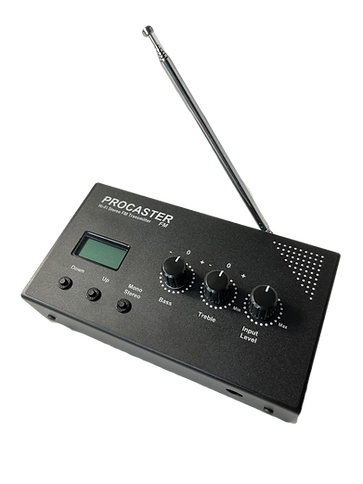

PROCASTER STEREO FM TRANSMITTER

Thomson 12VAC Power Supply2 trans.png
Audio cable 3ft.png

Range

Typical range is approximately 250ft line of sight. Car radios may reach up to 500ft. Broadcast in mono or stereo at the press of a button.  Broadcast crystal clear audio: gyms, schools,  personal hi-fi listening, church functions, various information broadcasting, language translation etc.

Full Range Hi-Fi Sound
Featuring low distortion hi-fi sound with superb low bass response and BIG FULL sound just like commercial broadcast stations.

Super quality hi-fi sound
Digital Signal Processing (DSP) provides full FM band frequency response with excellent dynamic range and low noise.

Automatic Audio Input Level
The Procaster FM automatically limits the audio input. The user can increase the volume using the input level control based on their listening preference without worrying about adjacent channel interference.

Legality

The Procaster FM transmitter is FCC approved and Industry Canada approved for legal use in the USA and Canada without a broadcast license. Don't risk hefty fines from the authorities by getting caught using a non-approved transmitter often purchased on Ebay or Amazon.

Versatile Mounting
The Procaster FM can be set on a flat surface, hung on a vertical surface or attached to a standard tripod making any application easier.

Premium Construction
Powder coated steel cabinet with stainless steel replaceable telescopic antenna. Quality construction - built to last. Intuitive, easy-to-use controls, gets you broadcasting right away.

Built-in tone controls
The Procaster FM features built-in bass and treble controls to tailor your sound.
A mono/stereo switch allows full stereo or switch to mono for better range.

Specifications

System Technology

Broadcast Range

Frequency Range

Pre-emphasis

Multi Power Input

Audio Input

Tone Control

Audio Distortion

Audio Frequency Response

Signal to Noise Ratio

Stereo Separation

Spurious Harmonics

Mechanical, Screen and Controls

Digital Signal Processing (DSP)

Typically 250ft line of sight
(500ft to quality car radio)

FCC:  88.1MHz to 107.9MHz

IC:     88.1 MHz to 107.5MHz

Channel spacing: 100kHz

Frequency setting retained on power down

75us (50us available for export)

12VAC @200mA
12VDC/Car Battery @200mA

Input reverse polarity protection

Over temperature protection

200mVpp to 6Vpp
1Vpp - Input level control midway

Bass +/-15dB @ 20Hz
Treble +/-15dB @ 15kHz

<0.1%

20Hz to 15kHz +/-1dB

>70dB

>40dB

Unmeasurable

2 line x 8 character yellow/green backlit LCD display

Bass and Treble controls with centre detent

Input Level control
Frequency up/down pushbuttons
Mono/Stereo pushbutton

Replaceable stainless steel telescopic antenna

Mounting

Physical

Included in box

Place on flat surface - rubber bumpers on underside

Hang on wall - 2 keyhole slots for #6 screwheads

Screw to tripod - 1/4-20 tripod mount on underside

Size:  6.5in L x 3.6in W x 1.5in H

          165mm L x 91mm W x 38mm H

Weight: 21oz  600g

Procaster stereo FM transmitter
1/8in to 1/8in (3.5mm x 3.5mm) audio patch cord - 3ft  L (914mm)
AC wall adapter 120VAC to 12VAC 250mA

User manual

Documents


FCC ID: VCJ-FMTX200


IC ID: 7378A-FMTX200
